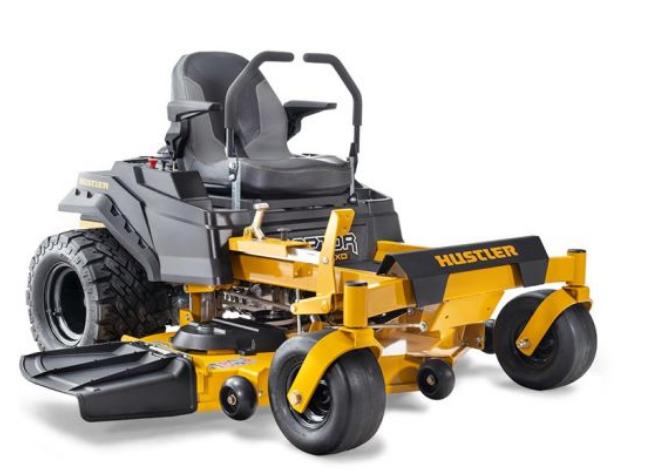

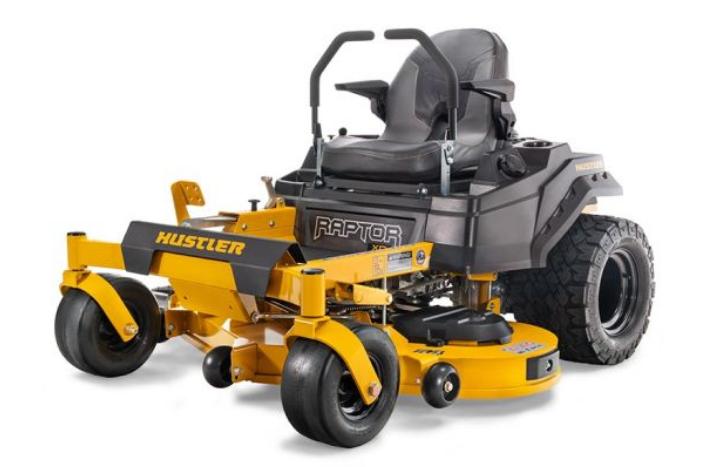

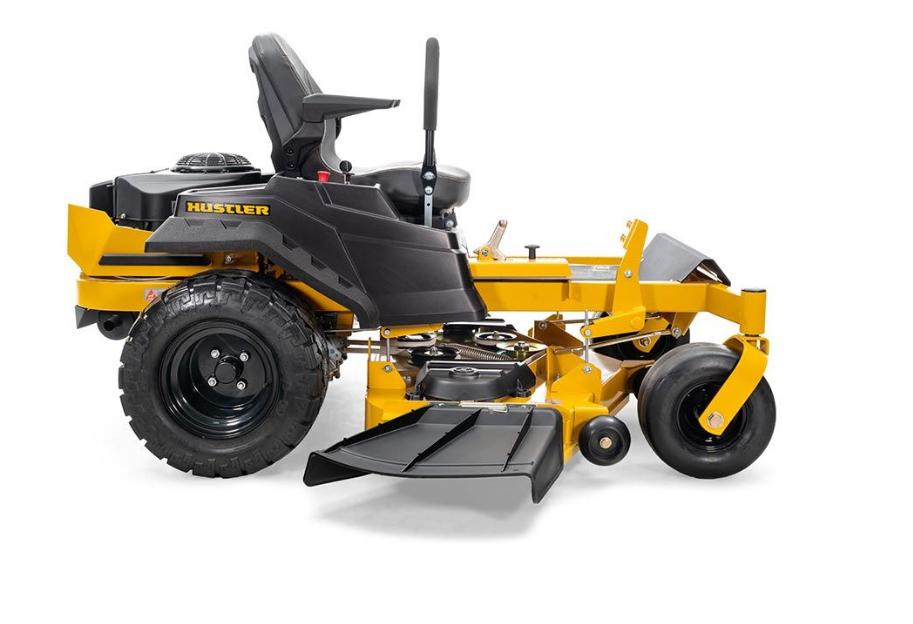

Hustler 940510EX Ride on Mower

Product Description
The Raptor XD is the ideal zero-turn for homeowners with up to five acres of property. Powered by a strong 23hp Kawasaki engine and with a tough 48 inch fabricated cutting deck.
Like all Raptors, we’ve spent decades and thousands of hours perfecting our durable fabricated decks that provide a crisp, clean cut-quality. Raptor XDs are backed by a 3yr / 300hr limited warranty.

Features
48" Cutting Width
2.9 Acres per Hour
23HP Kawasaki Engine
3 Year, 300 Hour Commercial Warranty

Specifications
Deck Width & Construction
48 Inch 11 Guage Fabricated Cutting Deck
Blades & PTO
3 Blades with electric PTO blade engagement
Spindles
Aluminum with 7 gauge spindle mounts, 1” shaft and double lip sealed ball bearings
Cutting Height & Adjustment
1.5" - 4.5" cutting range with foot assisted deck height adjustment
Optional Extras
Optional Mulch Kit, Optional Catcher Kit
Ground Speed
12 Km/h Ground Speed
Acres per hour
2.9 Acres per hour (Rating based on 80% efficiency to allow for real world mowing conditions)
Fuel Tank Capacity
11 L
Slope Capability
15 Degrees
Engine Type & Specifications
23HP Kawasaki FR691V Engine. Air cooled. 726cc.
Engine Warranty
3 Year Engine Warranty
Transmission Type & Specifications
Dual Hydro Gear ZT2800 Hydro Transmissions
Country of Manufacture
Made in the USA
Chassis Construction
1.5" x 3" Welded Tubular Steel Frame
Rear Wheels & Tyres
20" x 8" Rear Tyres
Front Wheels, Tyres & Castors
13" x 6.5" Front Tyres
Seat Type
Bolstered High Back Seat with Armrests
Console Features
Cup Holder
Park Brake
Automatic Park Brake
Suspension
Optional Flex Fork Front Suspension
Maintenance Access
Open rear design for easy engine maintenance
Tow Hitch
Optional Tow Hitch
Minimum Trailer Size
5 ft wide, 6 ft Long
Length
1760 mm
Width (Chute up)
1334 mm (Chute up)
Height (ROPS up & down)
1110 mm
Weight
284 kg
Residential Warranty
3 Year / 300 Hr Domestic warranty
Commercial Warranty
3 Year / 300 Hr Commercial Warranty
