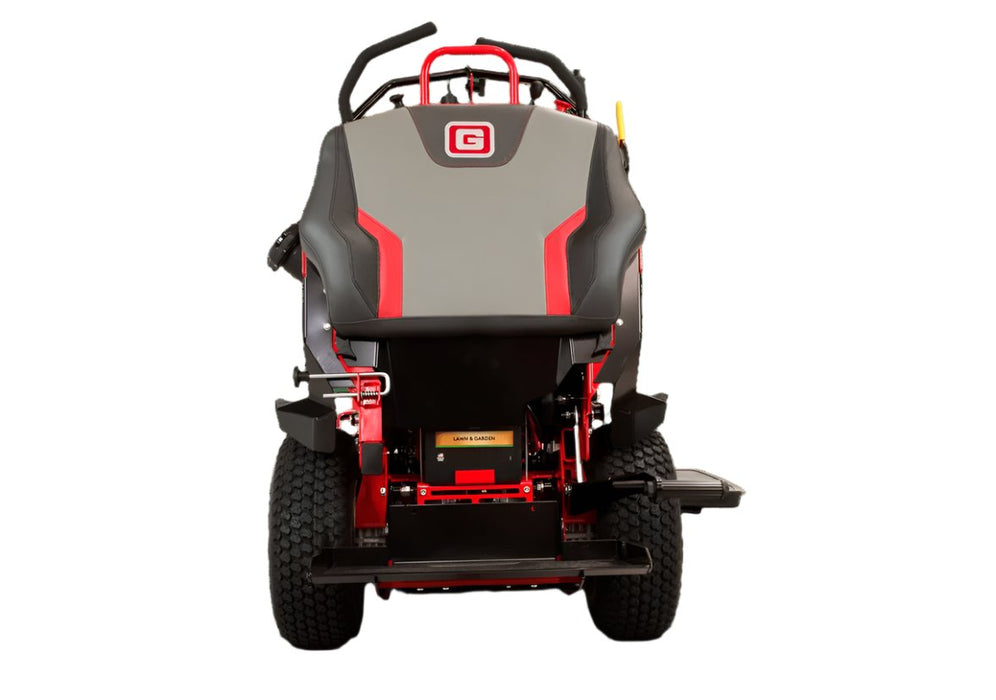

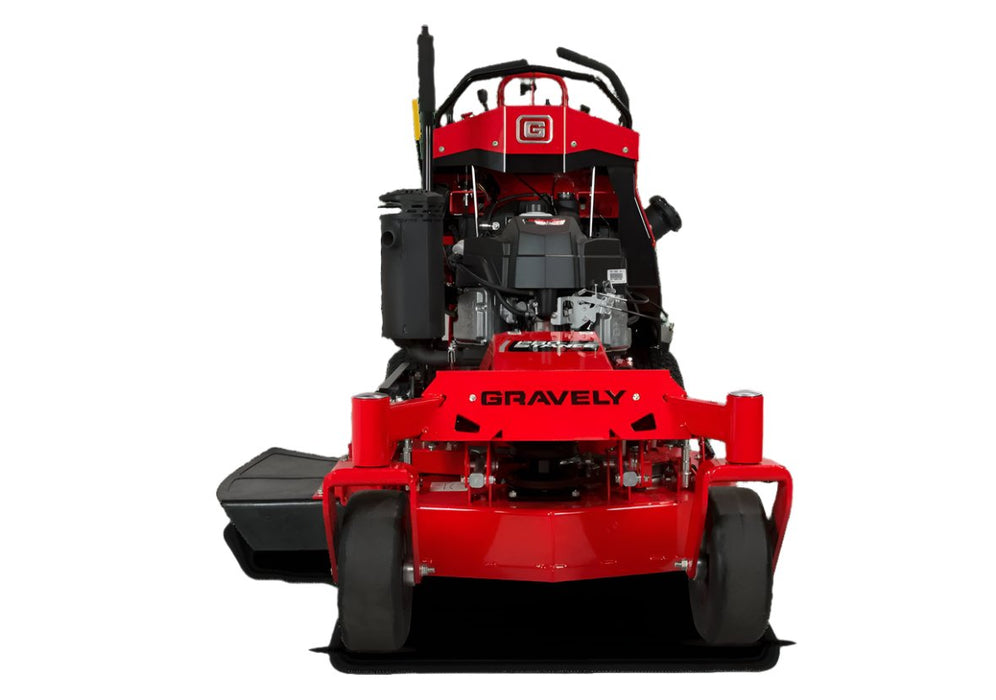

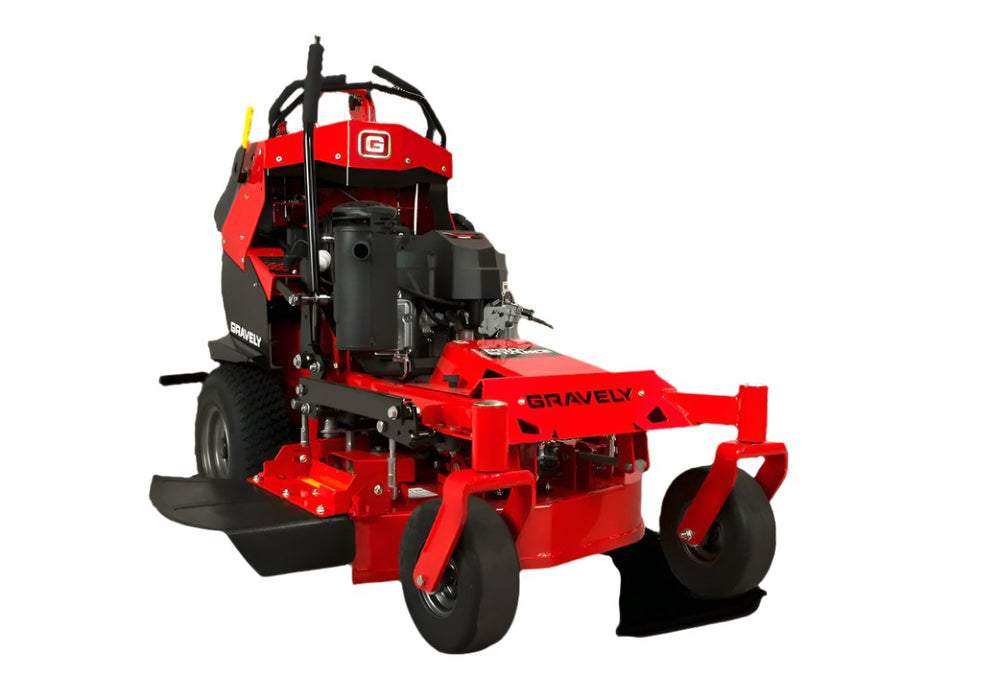

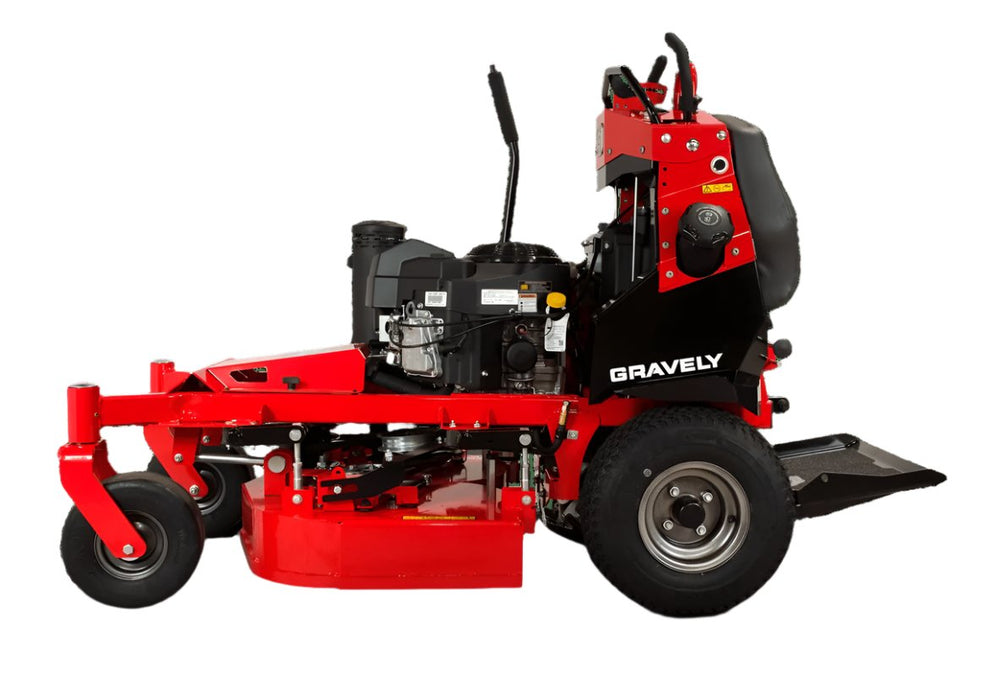

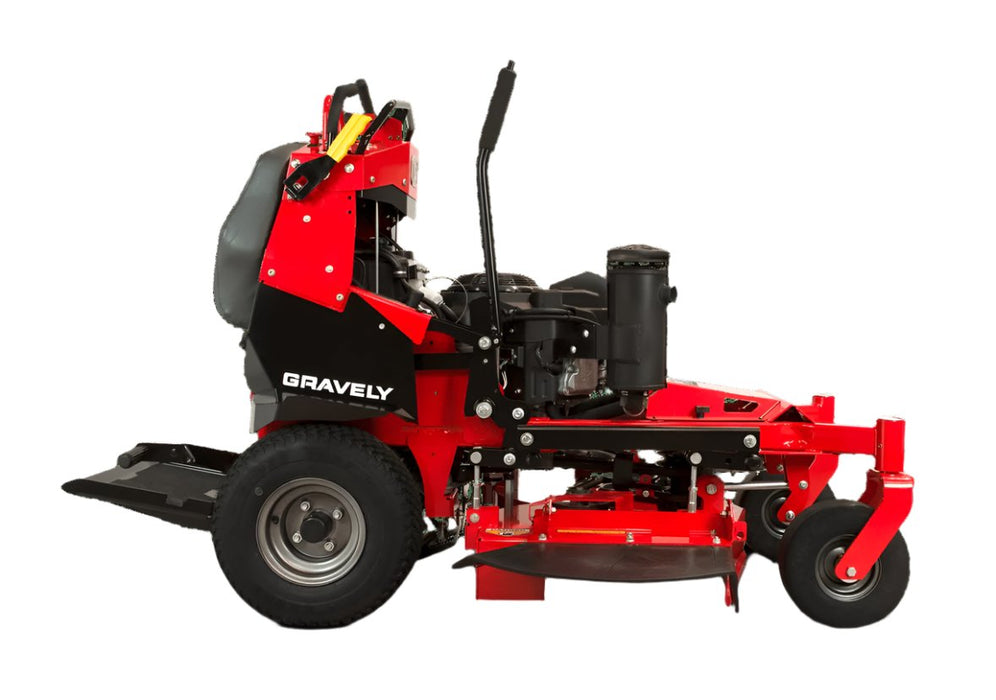

Gravely Pro-Stance 32 Inch Stand-On Zero Turn Mower

Gravely Pro-Stance 32" Stand-On Zero-Turn Mower
Stand-On Mowers, rugged, durable, and built to deliver an exceptional cut. Just like all Gravely commercial units, stand-on mowers give you additional flexibility. The perfect blend of power and performance for environments that demand quick on-and-off versatility. The deck adjusts easily, and the suspension platform absorbs vibration for all-day comfort
kawasaki 18.5 hp FS600V premium and commercial grade V-twin engine. Operator comfort features exceptional operator positioning for all-day comfort.
Added efficiency – reduced complexity gives users the freedom to make critical adjustments in just minutes. Adjustable Cruise Bar - allows the operator to limit and expand the unit’s maximum speed in tight working environments . Deck height adjustment - the dual height-adjustment system was designed with both a traditional hand lever and a foot lever to lift and adjust the deck. It’s perfect for smaller operators who may struggle with traditional hand lever lifts.
X-FACTOR® 3 deck - the deck has been completely redesigned for better grass dispersion. Its new look is constructed from 7-gauge steel to deliver years of solid performance.
Compact stance perfect for tight spaces.
Offers 15 cutting positions, ranging from 38.1 mm - 127 mm.
Shock-absorbed operator platform which responds to driver’s weight.
Heavy-duty fabricated frame.
Specifications
Warranty Information
Domestic Warranty 5 Year / 1000 Hour Domestic Warranty
Commercial Warranty 5 Year / 1000 Hour Commercial Warranty
Miscellaneous
Blade(s) 2
Dimension Specs
Dry Weight 340.2 kg
Height 1219 mm
Width 851 mm with chute up
Overall Length 1511 mm
Zero Turn Mower Specs
Ground Speed - Forward Up To 12.8 km/h
Brakes
Hand-operated Park brake Construction
Frame 1" x 3" STEEL Tubular frame welded
ROPS No
Controls Hand-operated choke, throttle, ignition switch, electric mower clutch, Hand lever operated hand brake
Deck System 4 Point Lift Fabricated
Deck Lift Dual deck height adjustment
Deck Construction Fabricated 7 Gauge
Blade Tip Speed 18,220 FPM
Blade Drive V-belt drive to spindles with electric clutch. Spring tension idler pulleys for extended belt life
Spindles Forged Aluminium with sealed ball bearings
Drive System Hydro-Gear® ZT-3100 Transaxle
Discharge Chute High density, rubberised
Steering Twin-lever steering provides independent control of each drive wheel. Speed, forward, reverse and turns are all controlled with hand-operated controls Engine and Fuel Specs
Engine Kawasaki FS600V
Type Air cooled, 90-degree V-twin, normally aspirated petrol engine
Engine (cc) 603 cc
Horsepower 18.5 hp
Cooling Air cooled. Fly-wheel fan
Fuel Unleaded fuel - maximum of 10% ethanol in fuel (see engine manufacturers specifications)
Fuel Filter Replaceable, automotive-type
Oil Filter Spin-on engine oil filter / Total oil capacity 1.7 litres with filter
Air Filter Dual element with reinforced primary filter
Fuel Capacity 22.6 L
Pumps Hydro-Gear ZT-3100
Cutting Dimensions
Cutting Widths 32" Cut Side Discharge
Cutting Height(s)
38 mm - 127 mm
