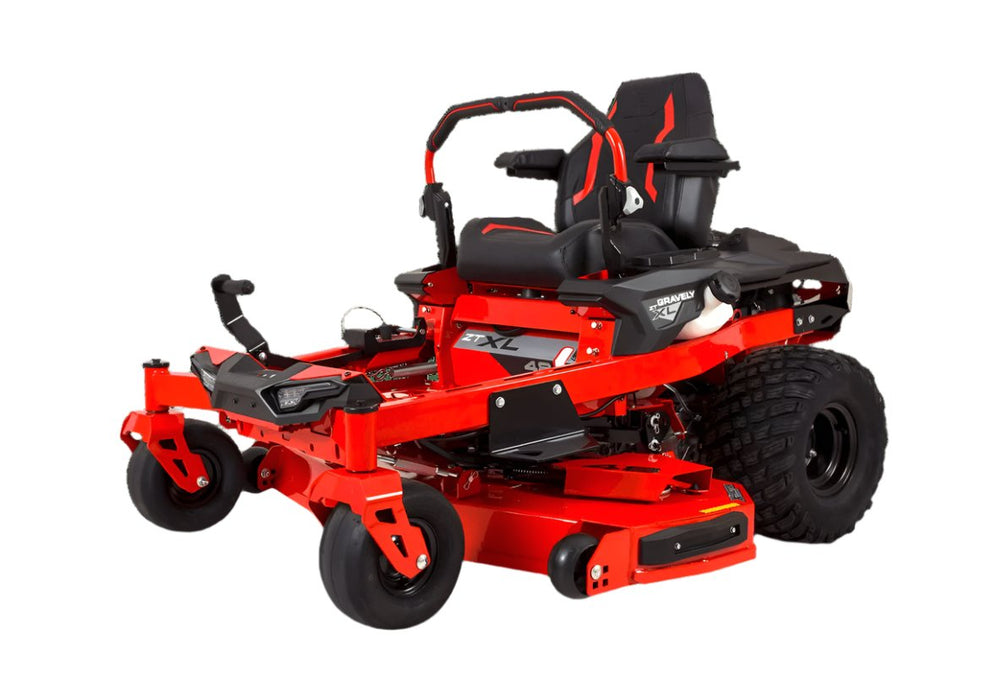

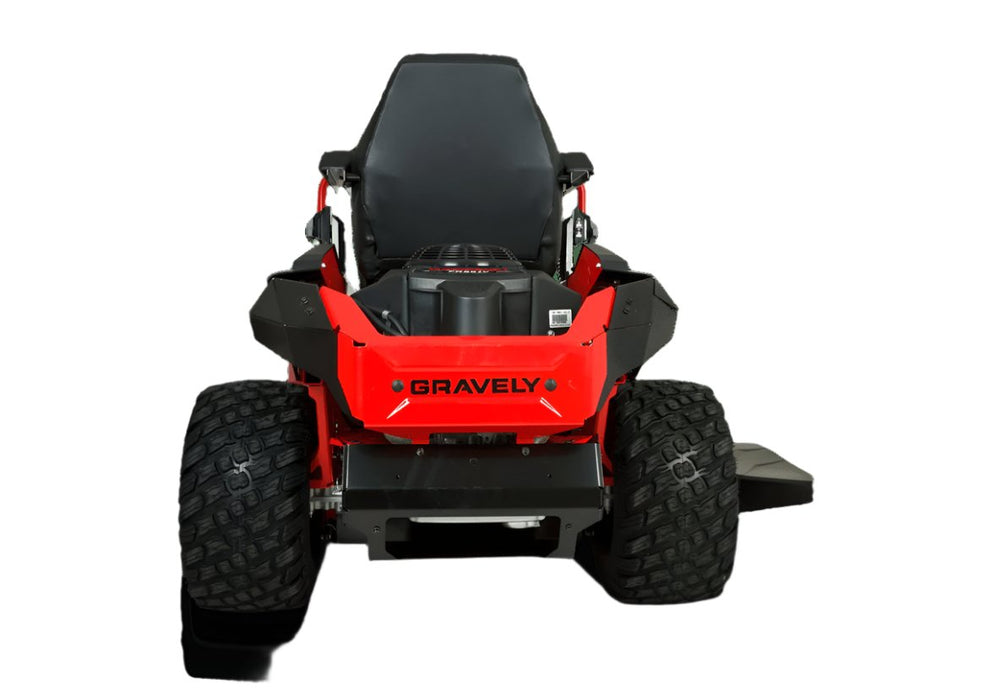

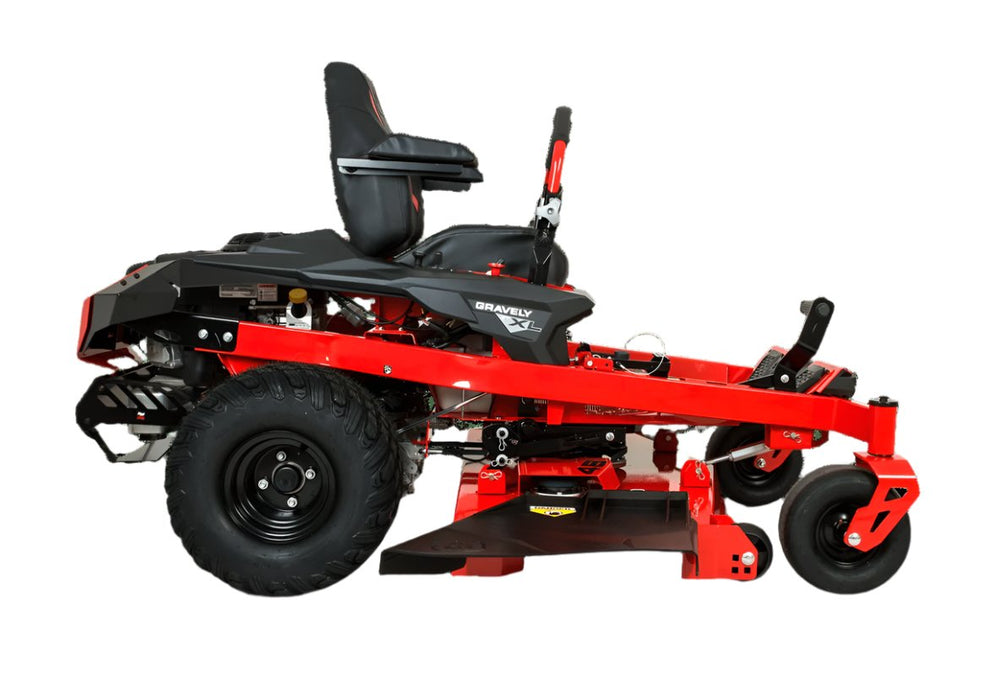

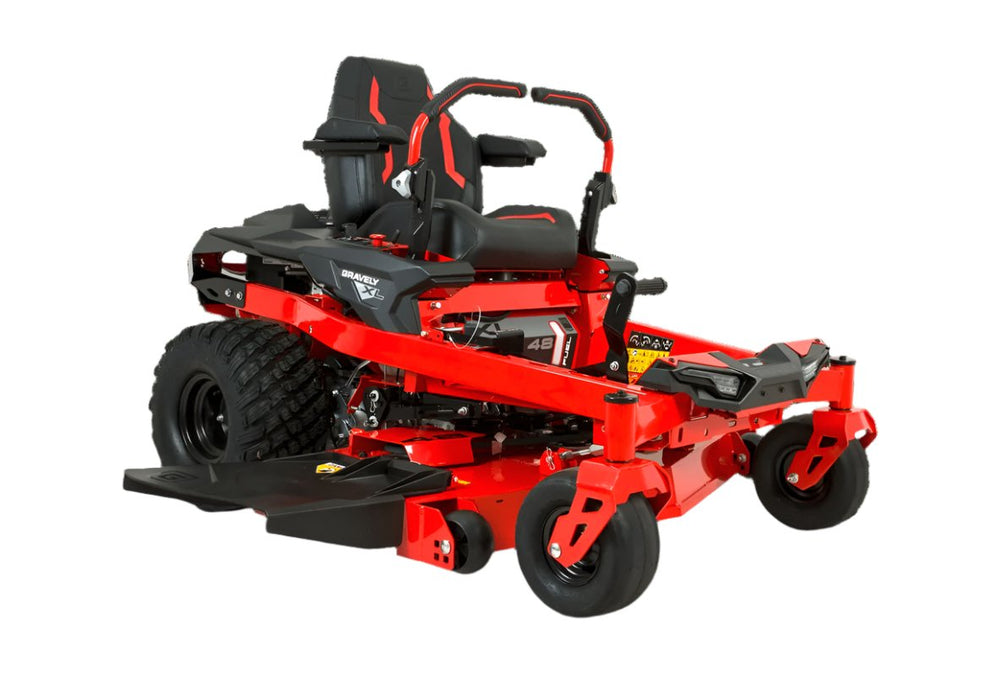

Gravely Ride On Mower ZT XL 48 Inch 23hp Zero Turn Mower

Gravely Ride On Mower ZT XL 48 Inch Designed with a fully welded tubular frame for a strong, stable backbone, and hydro-gear transaxles that provide increased torque, a smoother ride, and longer life. The ZT XL 48? features a 4.5-inch deep 11-gauge fabricated desk with an optimised airflow design.
The professional grade quality of the ZT XL was built for big jobs. This is a residential machine with heavy-duty features that make users forget they’re not on a commercial mower. Designed with a Kawasaki V-Twin Engine and a 10.5 litre fuel capacity, this unit cuts big jobs down to size.
Specifications
Warranty Information
Domestic Warranty 4 Year / 400 Hour Domestic Warranty
Commercial Warranty 4 Year / 400 Hour Commercial Warranty
Miscellaneous
Blade(s) 3
USB Port Yes
Dimension Specs
Dry Weight 312.5 kg
Height 1193 mm
Width 1298mm With chute up
Overall Length 1892 mm
Zero Turn Mower Specs
Ground Speed - Forward Up To 11.3 km/h
Brakes Steering Arm Integrated Park Brake
Seat
Bolstered High Back Seat With Arm Rests
Hour Meter Standard
ROPS ROPS Not Supplied With Units
Cup Holder Yes
Deck System Fabricated X-Factor®
Deck Lift Foot Operated
Deck Construction 11 Gauge Fabricated
Blade Tip Speed 18,000 FPM
Spindles
Forged Aluminium with sealed ball bearings
Drive System
Hydro-Gear® ZT-2800® Transaxles
Engine and Fuel Specs
Engine Kawasaki FR691V V-Twin
Engine (cc) 726 cc
HP 23 hp
Fuel Capacity 13.2 L
Mowing Deck Specs
Kit - Mulch
Available Optional Accessory
Cutting Dimensions
Cutting Widths
48? (1219 mm) Cut Side Discharge
Cutting Height(s)
13 Cutting Positions / 38 mm – 114 mm
